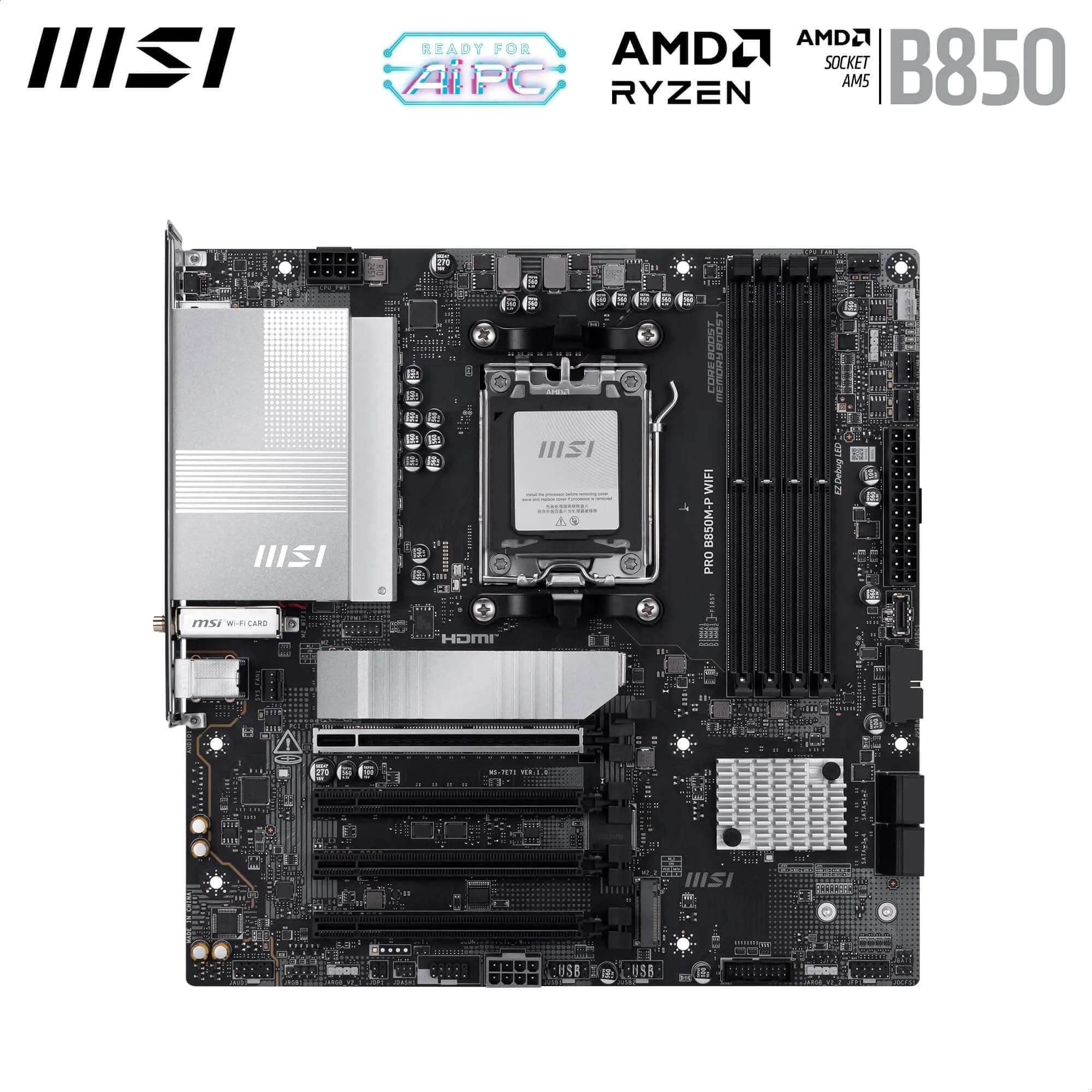

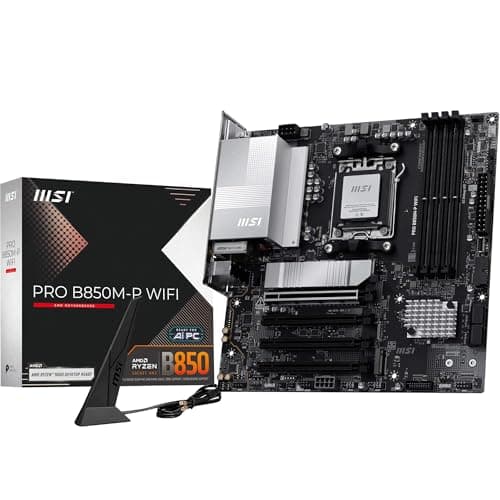

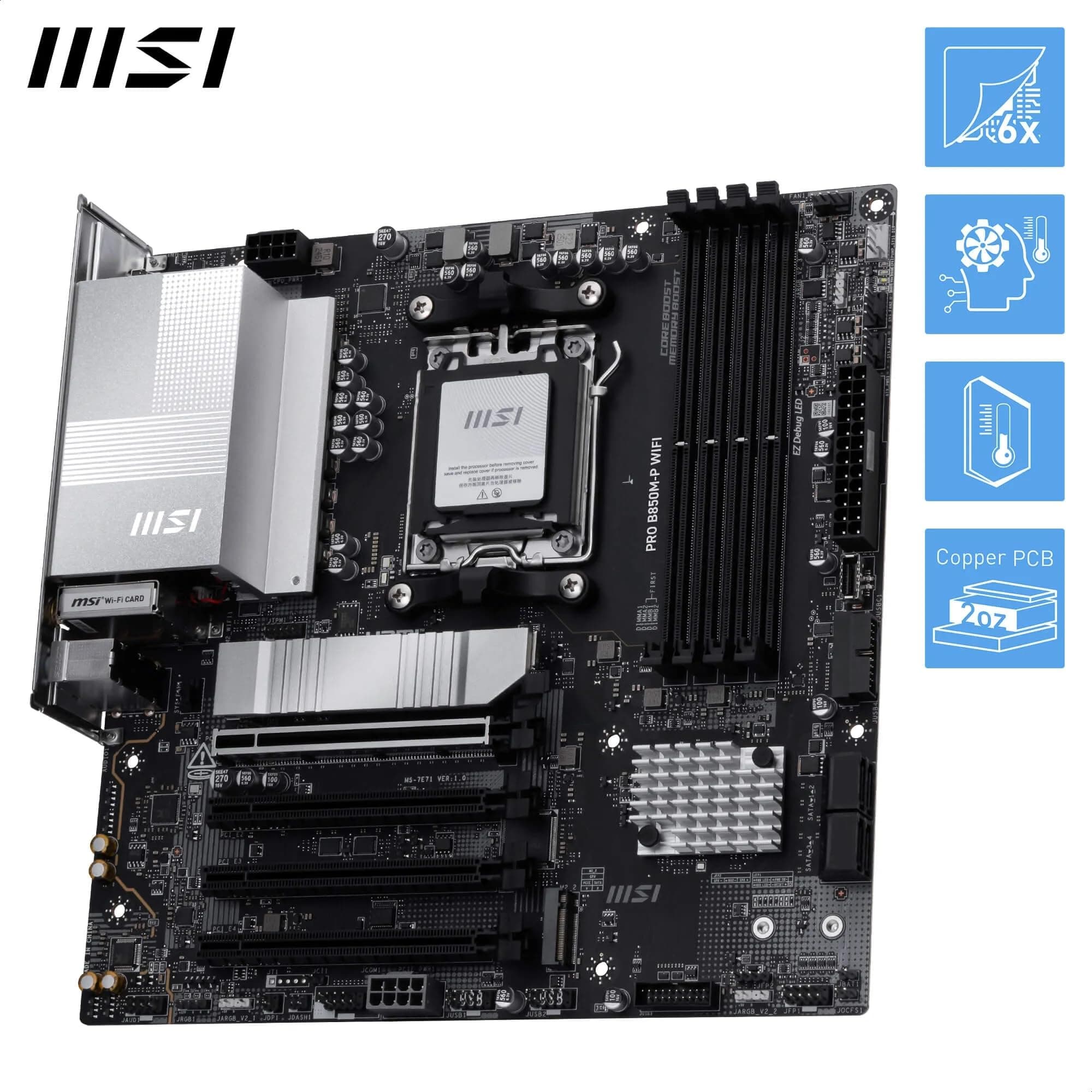

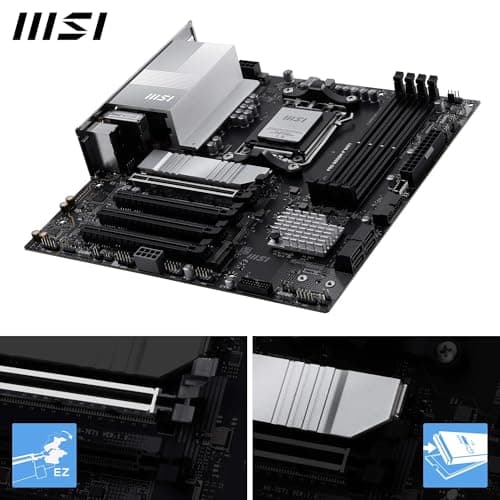

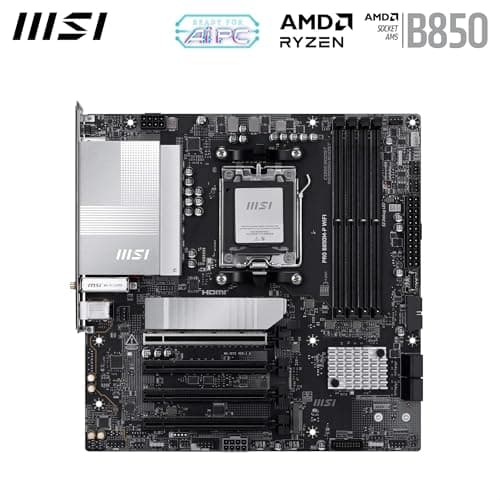

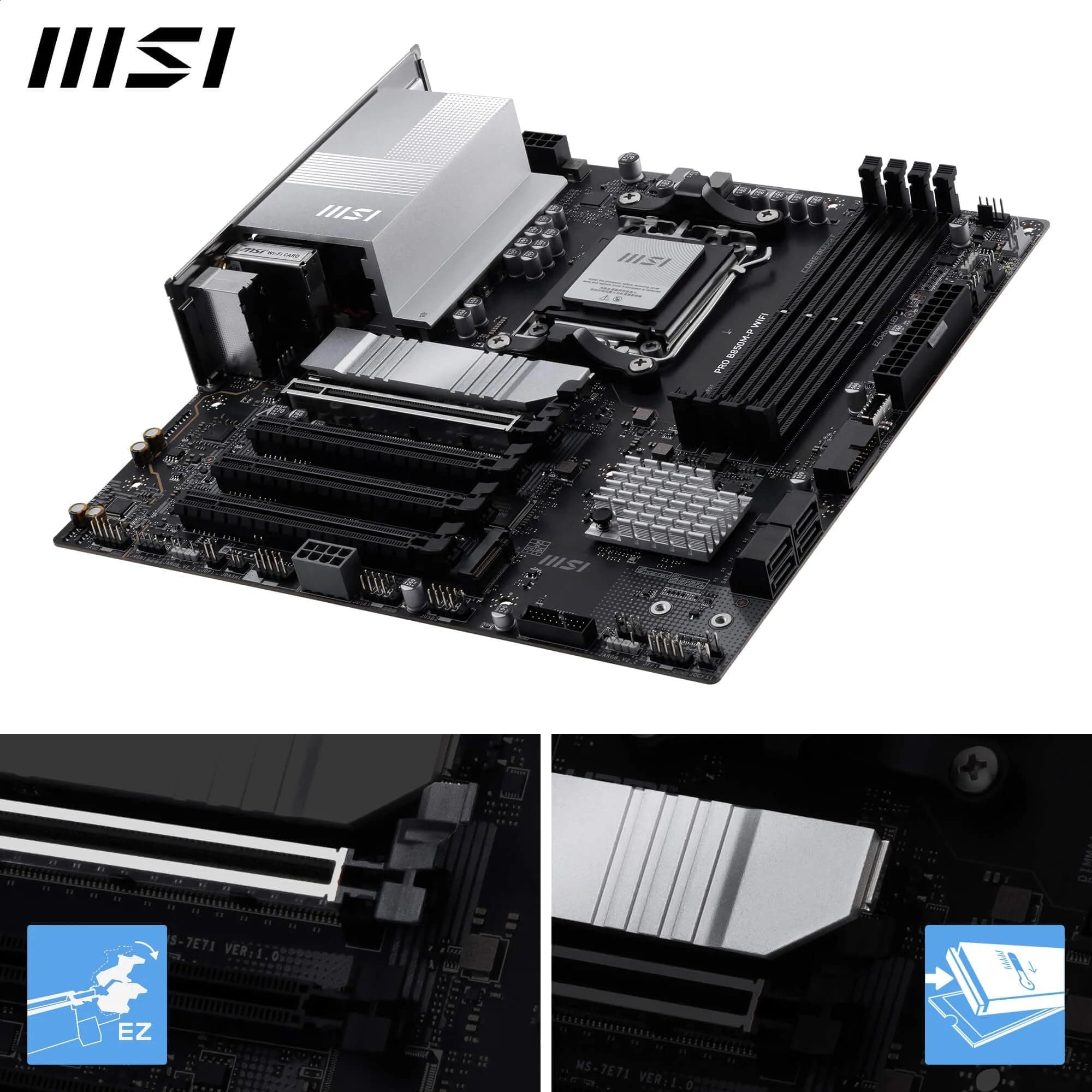

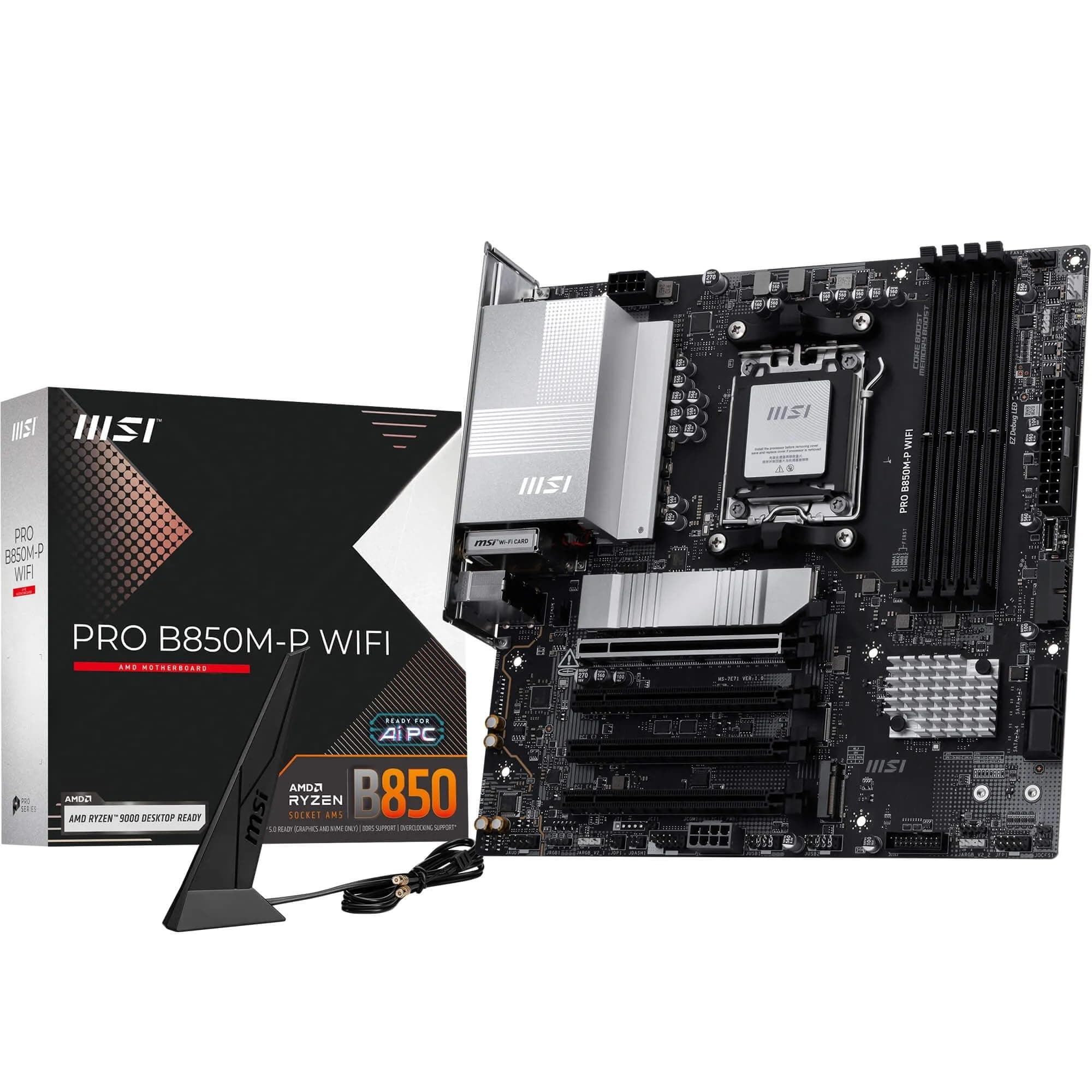

MSI PRO B850M-P WiFi Motherboard, mATXSupports AMD Ryzen 9000/8000 / 7000 Processors, AM5DDR5 Memory Boost (8200+ MT/s OC), PCIe 5.0 x16 & 4.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN
Beliebt
Affiliate-Link:Kauf & Bezahlung erfolgen beim Händler — dir entstehen dadurch keine Mehrkosten.
Preis-Stand: 30.09.2026, 09:11 Uhr. Alle Preisangaben ohne Gewähr; maßgeblich ist der Preis beim Händler.
Passt die Komponente in deinen PC?
Prüfe Kompatibilität mit Gehäuse, Netzteil und Mainboard in wenigen Klicks.
Kompatibilität prüfenDie wichtigsten Daten
Highlights
ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The PRO B850M-P WIFI employs a Direct 7 Phase (P-PAK) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
DDR5 MEMORY, PCIe 5.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards
TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot
HIGH-SPEED CONNECTIVITY - Network hardware includes a Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 10Gbps Type-C and 7.1 HD Audio with Audio Boost
Alle Spezifikationen
Prozessor
3- Prozessorsockel
- Socket AM5
- Prozessor-Hersteller
- AMD
- Kompatible Prozessor-Serie
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Arbeitsspeicher
1- Max. Arbeitsspeicher
- 256 GB
Anschlüsse & Konnektivität
5- HDMI-Version
- 2.1
- USB-2.0-Header
- 4
- HDMI-Anschlüsse
- 1
- USB 3.2 Gen2 Typ-A
- 3
- USB 3.2 Gen2 Typ-C
- 2
Ausstattung & Gehäuse
1- Farbe
- Schwarz
Weitere Angaben
7- Tiefe
- 243.8 mm
- Ethernet
- Ja
- Speicherkanäle
- Dual-channel
- Speicherbänke
- 4
- Unterstützte Speichertypen
- DDR5-SDRAM
- Mainboard-Formfaktor
- micro ATX
